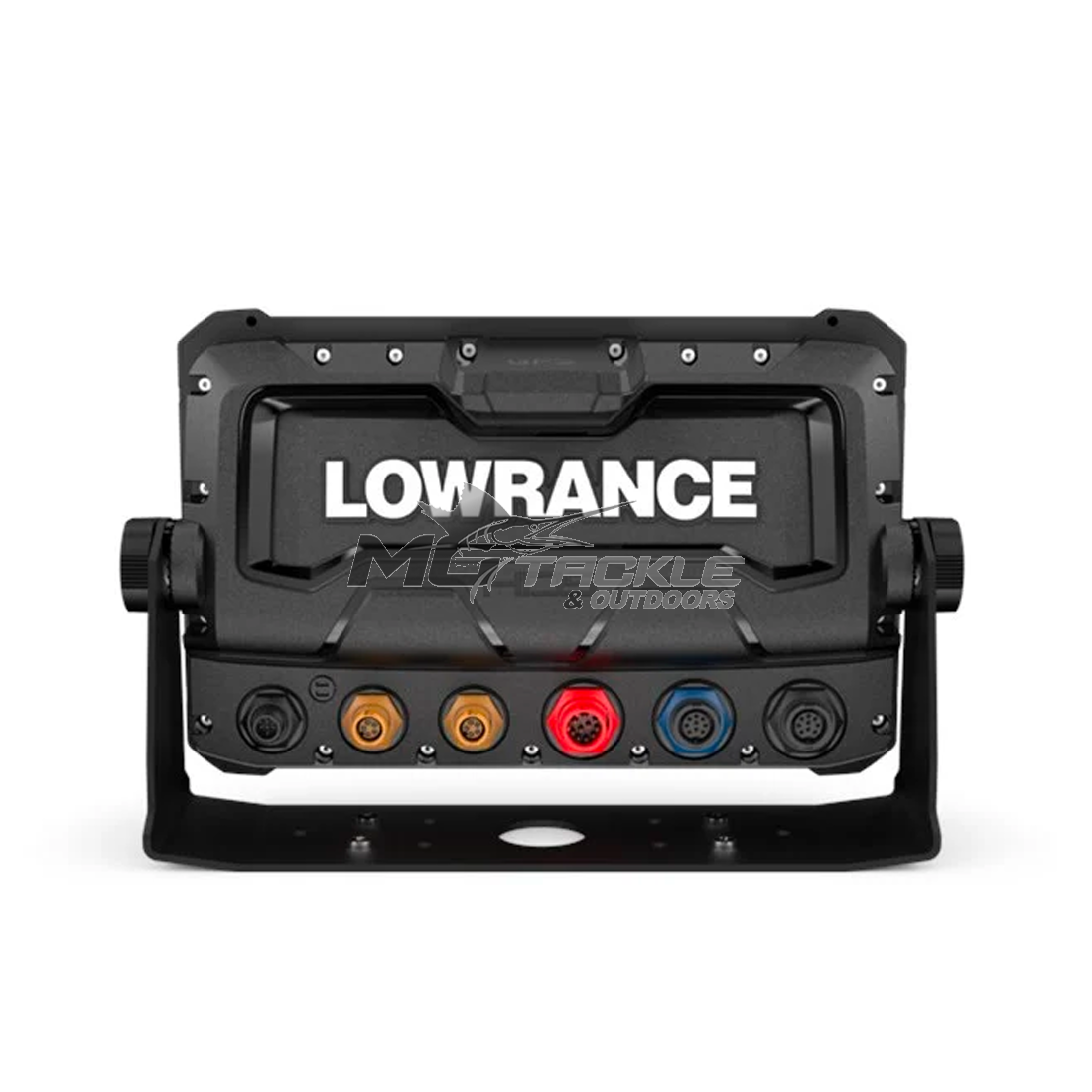

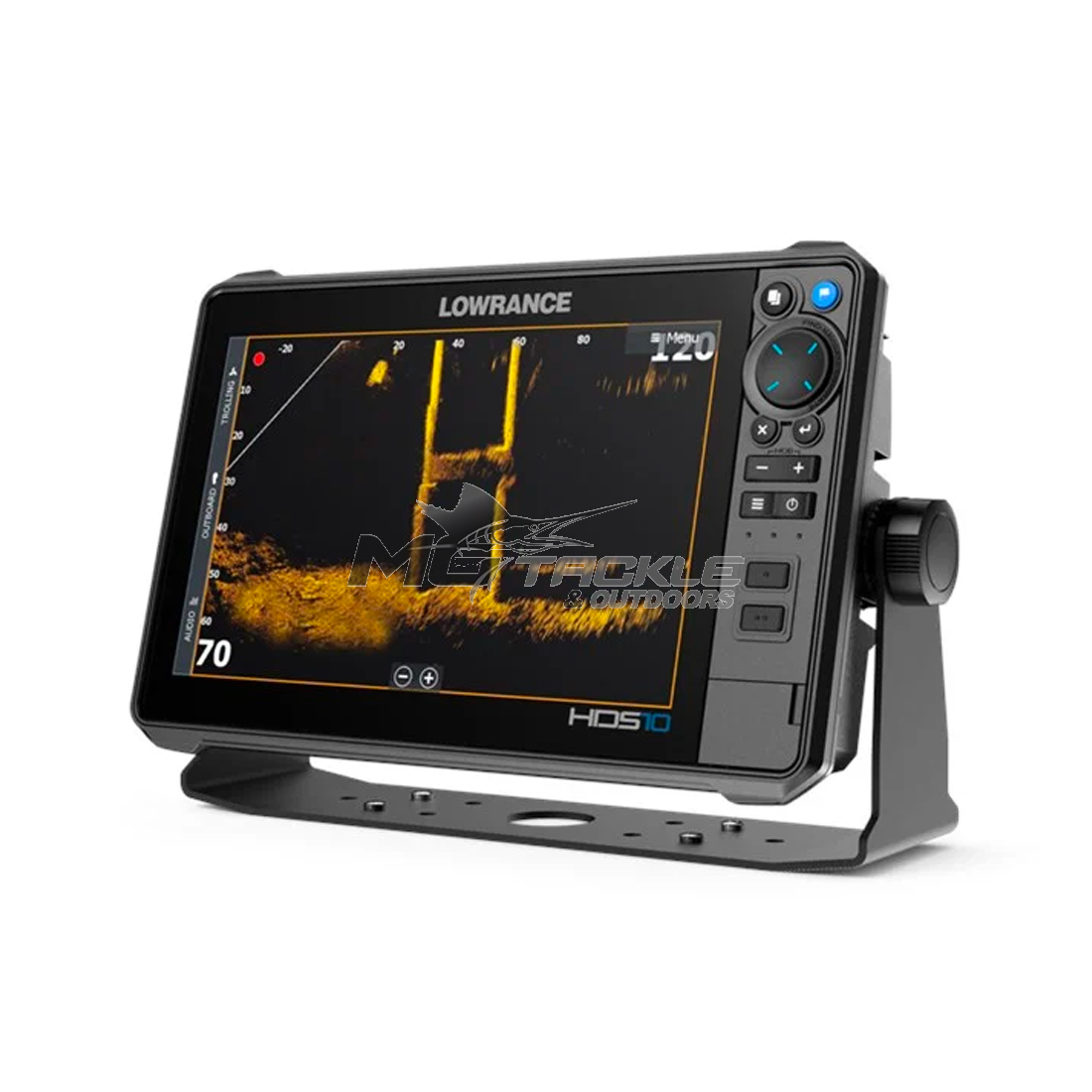

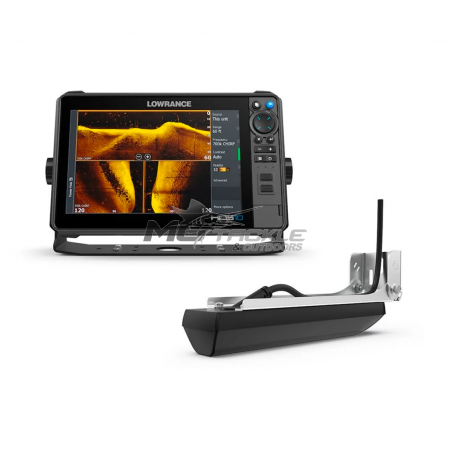

Lowrance HDS Pro 10 Active Imaging HD 3-In-1 Sounder

Lowrance HDS10 Pro Combo delivers the full Range of best-in-class Sonar with support for a new Range of High-Definition Active Imaging transducers. HDS10 Pro has Dual 1kW Sonar with CHIRP and is networkable to Lowrance performance sonars (Active Target and Active Target2), Radars, Trolling Motors, and Autopilots along with Waypoint, Chart, and Sonar sharing. C-MAP Enhanced charts of Australia and New Zealand are preloaded.

Features:

• SolarMAX HD 10 touchscreen viewable at extreme angles and through polarized lenses, 1280 x 720 Pixels, >1200 nits brightness
• New! High-definition 1.2MHz Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)
• New! High-resolution Active Target 2 Live Sonar ready
• Supports two Active Target Systems for multiple views simultaneously to widen front and scout modes for better bait tracking
• Supports Fish Reveal with new SideScan view, as well as DownScan (S3100 Sonar Module & compatible Transducer required, not included)
• Preloaded C-MAP Enhanced charts for Australia and New Zealand
• Real-time mapping available with C-MAP Genesis Live.
• Support for new ActiveTarget Scout and Ghost Trolling Motor 360 Chart overlay views
• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot and Lowrance Outboard Pilot
• NMEA 2000, Wireless and Bluetooth, connectivity – plus smartphone notifications
• Dual Ethernet ports for easy networking of multiple displays
• Wide Range of optional Chart upgrades including C-MAP REVEAL, Navionics and more
• Optional wireless remote is easy to connect and improves usability letting you add Waypoints remotely and activate up to 5 favourite features without needing to touch the screen
• Smart Steer allows on screen control of Lowrance Ghost and MotorGuide Xi5/Xi3 Pinpoint GPS equipped Trolling motors allowing easy use of Anchor lock, Heading lock, follow routes and go-to-cursor functions
• Fully compatible with all the advanced features of Halo radars such as Dual Range, Velocity Track, Zone Track and Beam sharpening.
• JL Audio and Fusion NMEA2000 connectivity lets you enjoy your music through the system on the water
• 2 x MicroSD card slots

Specifications:

• Physical Dimensions: 325.4mmW x 207.3mmH x 95.99mmD including bracket
• Screen Size: 10"
• Display Resolution: 1280W x 800V pixels
• Screen Brightness: 1200 nits
• Processor: Dual-Core
• IPX Water Rating: IPX7
• Voltage: 10-17vDC
• Wattage: 37.7W max power consumption
• Transmit Power: 1kW
• Ethernet Ports for multiple screens: 2 Ports
• NMEA0183 Compatibility: Yes
• NMEA2000 Compatibility: Yes
• Video Input Ports: 1 x Composite RCA
• Mounting Options: Bracket Mount and Surface Mount
• WiFi Connectivity: Builtin
• Expansion Card Slot: 2 x microSD
• Accepted Map Cards: CMAP Discover, CMAP Reveal
• Waypoints: 3000
• Routes: 100
• Track Log: 100 Trails with up to 10,000 points per trail
• Sonar Compatible: Yes
• Supports AIS (tracks target ships position): Yes
• Tide Tables (from map card option): Yes
• Autopilot Compatible: Yes
• Trolling Motor Compatible: Yes
• Audio System Comaptible: Yes
• Fusion-Link Compatible Marine Radio Support: Yes
• Radar Compatible: Yes
• Chirp Sonar: Yes
• Operating Frequency: 83KHz, 200KHz, 455KHz, 800KHz
• Active Imaging (Transducer Dependant): HD, with Active ImagingHD Transducer
• Down Imaging (Transducer Dependant): Yes
• Useable Depth Down Imgaging: 50m+
• Sonar Useable Depth (T/D & Frequency Dependant): 300m+ with 1kW T/Ducer
• Side Imaging (Transducer Dependant): Yes
• Sonar Track Back: Yes
• Output Power: RMS 1kW
• Water Temperature: Yes
