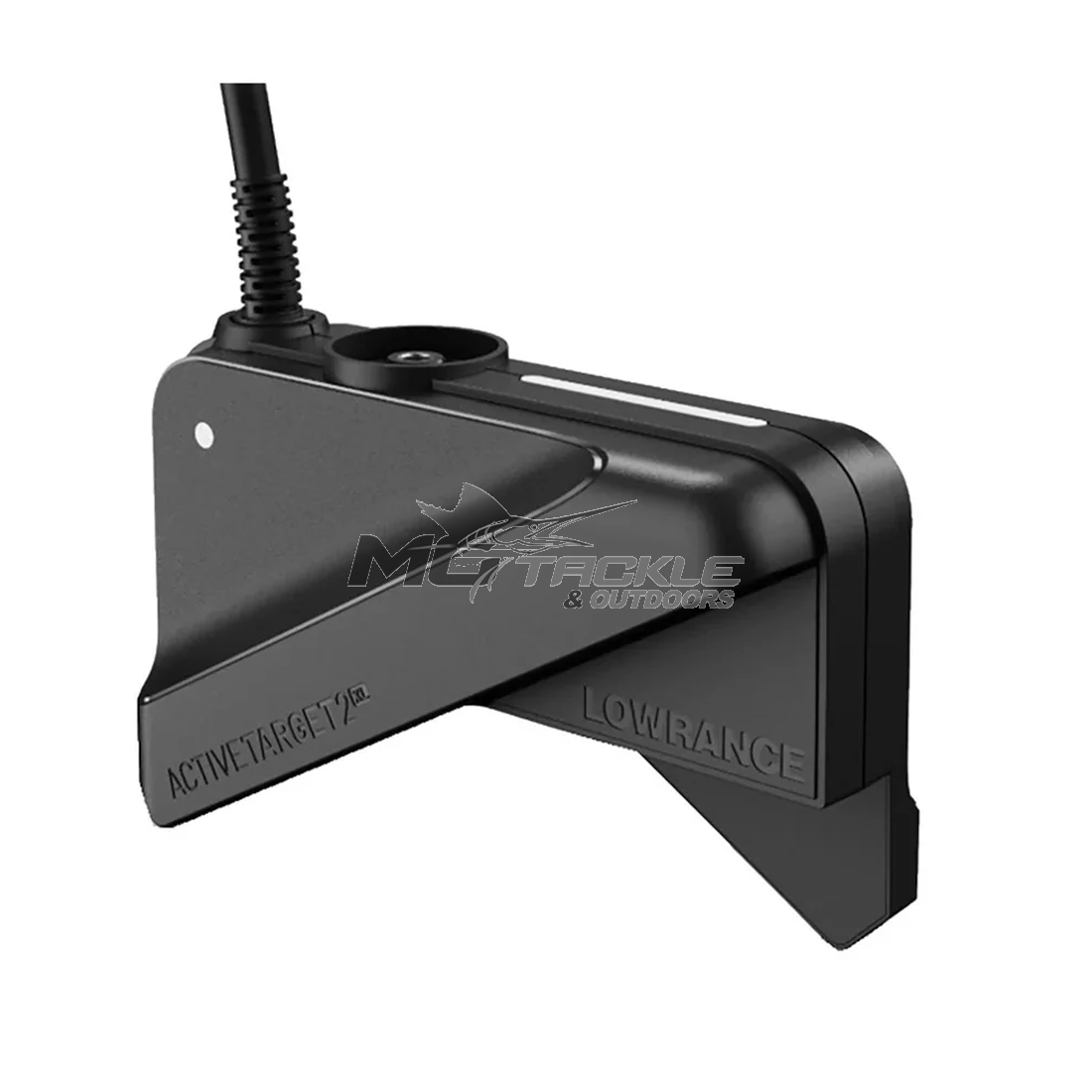

Lowrance ActiveTarget 2 XL Transducer

Designed to show fish, structure and lure movement in real time, the XL transducer provides full 180° coverage across Forward XL, Down XL and Scout XL modes, helping anglers see more of what’s happening around the boat and make more accurate casts.

Designed as an easy upgrade for existing ActiveTarget 2 users, the XL transducer is compatible with the existing ActiveTarget 2 sonar module and a range of Lowrance displays. The supplied 25ft cable provides flexibility during installation, while the redesigned mounting system makes switching between sonar views quick and straightforward. This is the transducer-only version and requires an ActiveTarget 2 sonar module to operate.

Features:

• High-resolution real-time live sonar imaging
• Wide 180° field of view
• Forward XL, Down XL and Scout XL viewing modes
• See fish, structure and lure movement in real time
• Switch between Forward XL and Down XL directly from the display
• Improved switching into Scout XL mode
• Quick-reference markers for shallow and deep Scout positioning
• Compatible with existing ActiveTarget 2 sonar modules
• Compatible with Lowrance HDS PRO, HDS LIVE, HDS Carbon and Elite FS displays
• Optional Scout Live 360° capability when using two systems with HDS PRO
• Shaft mounting support, with motor mounting available for compatible RECON trolling motors
• 25ft transducer cable
• IP67 waterproof rating
• Maximum sonar depth of approximately 60.9m (200ft)
• 650–1300kHz operating frequency
• Transducer dimensions: 179.9 x 113.6 x 68mm
• Transducer weight: 1.61kg
• Transducer only – ActiveTarget 2 sonar module required
