Lowrance Elite 9 FS Chartplotter - NO Transducer

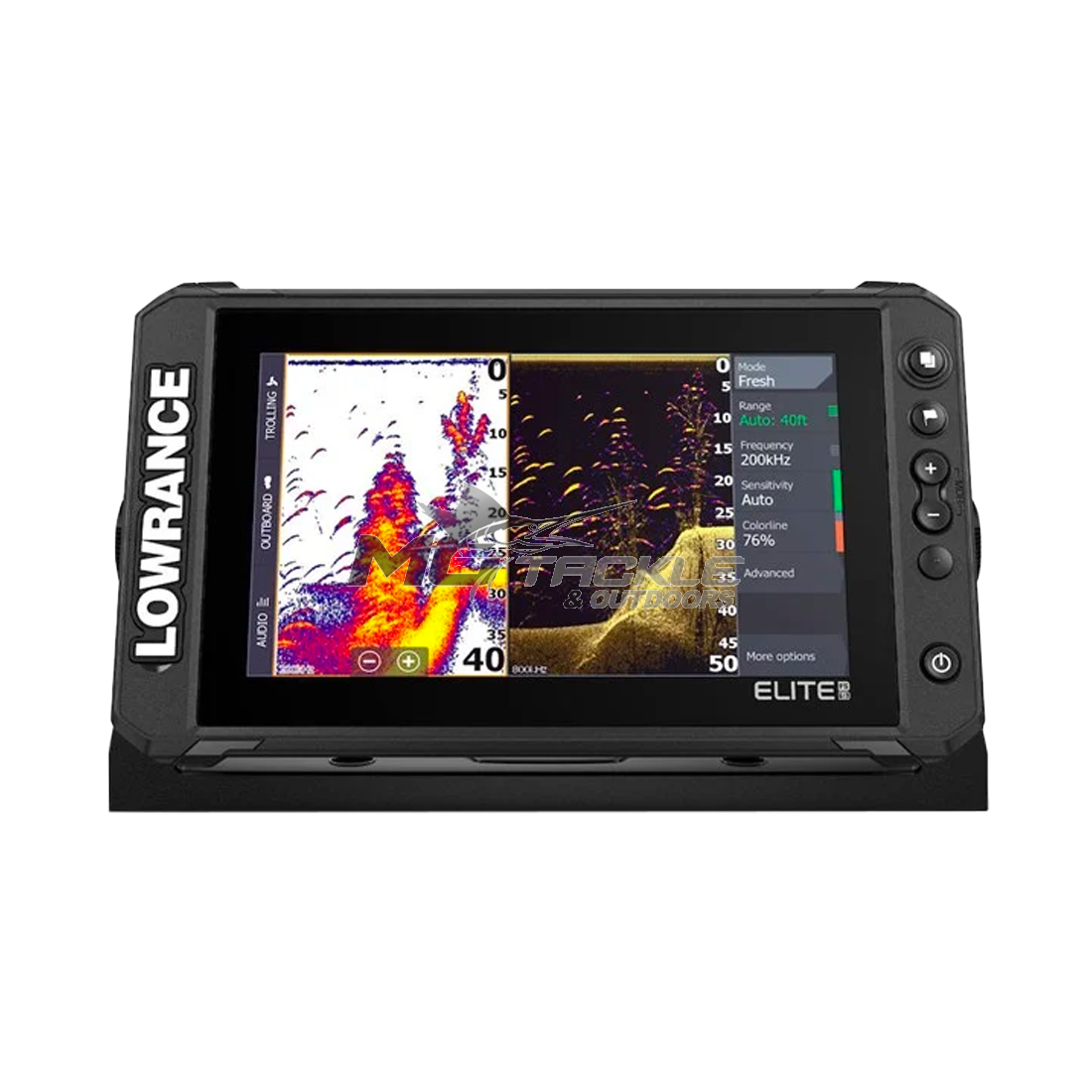

Lowrance Elite 9 FS chartplotter brings advanced features to the Elite series such as full function networking, user programmable key and Active Target compatibility. This allows for a fantastic user experience by showing it all through a bright anti-reflective multi touch display.

Features:

• 9" Multi-touch display, 800 x 480 Resolution and 1200 nits brightness
• 10Hz high speed updates GPS Receiver. >WAAS, MSAS, EGNOS, GLONASS compatible
• 1kW RMS
• Pre-loaded with C-MAP Contour + Charts map including coverage of Australia, New Zealand, Fiji and New Caledonia, expandable with optional extra C-MAP or Navionics charts
• Programmable quick access key allows you to set a commonly used feature to always be at hand such as setting a Waypoint, standby, open a favourite page and countless more
• Ethernet connectivity for full network functions and data sharing with instruments and other displays
• NMEA2000 (micro-c) compatibility
• With the addition of an Active Imaging 3-in-1 Transducer (option) Sonar imaging, you'll have amazing clarity, even superior to StructureScan HD
• Active Target (option) compatibility allows for Live Sonar viewing that gives you a full around view and real-time response images of how the Fish are reactive to your lure, letting you adjust in a more informed manner
• IPX7 water proofing from front
• 12V power
• microSD slot
• Built in WiFi b/g/n and Bluetooth 4.0 (classic compatible)
• Similar cut-out and same >Gimbal bracket as HDS live allows for easy retrofitting to existing set up

Specifications:

• Physical Dimensions:

  Including bracket and cable clearance: 309.2mmW x 180.7mmH x 118.4mmD
• Without bracket: 289mmW x 170.5mmH
• Screen Size: 9"
• Display Resolution: 800W x 480v pixels
• Screen Brightness: 1100 nits
• Processor: Unknown
• IPX Water Rating: IPX7
• Voltage: 12vDC
• Wattage: 28w
• Transmit Power: 1kW RMS
• Ethernet Ports for multiple screens: 1 Port
• NMEA2000 Compatibility: Yes
• Mounting Options: Bracket Mount and Flush-mount
• WiFi Connectivity: Built-in
• Expansion Card Slot: 1 x microSD
• Sonar Compatible: Yes
• Supports AIS (tracks target ship's position): Yes
• Tide Tables (from map card option): Yes
• Autopilot Compatible: Yes
• Trolling Motor Compatible: Yes
• Audio System Compatible: Yes
• Wireless Remote Compatible: Yes
• Active Imaging (Transducer Dependent): Yes with Active Image or 3-in-1 Transducer
• Down Imaging (Transducer Dependent): Yes
• Side Imaging (Transducer Dependent): Yes
• Sonar Track Back: Yes
• Output Power: RMS: 1kW (transducer dependent)
• Water Temperature: Yes
