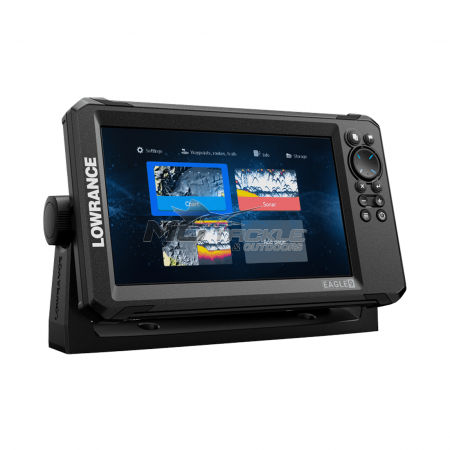

Lowrance Eagle 9 Tripleshot HD Aus/NZ Sounder

The Eagle-9 TripleShot™ AUS/NZ is a top-tier fishfinder designed to enhance your fishing experience in Australia and New Zealand. It features a 9" IPS screen that offers superb clarity and visibility from all angles, even with polarized glasses. Equipped with the TripleShot™ HD transducer and FishReveal™ technology, this device combines high CHIRP sonar with high-resolution imaging from SideScan and DownScan Imaging™ to provide detailed underwater views and unmatched target separation. The included C-MAP® Embedded inland and coastal charts make navigation a breeze, allowing you to spend more time fishing and less time searching for hotspots.

Installation is straightforward with the new twist-lock connector system, suitable for any boat or kayak. The Eagle-9 also supports Genesis Live, enabling you to create custom contour maps in real-time, and features an SD card slot for software updates and charting add-ons. With its simple autotuning sonar, you get the optimal settings from the start, ensuring a hassle-free setup and use.

Features:

• Enhanced TripleShot™ HD Transducer with Autotuning sonar
• C-MAP® Embedded inland and coastal charts for New Zealand and Australia with Genesis® Live
• 9" IPS screen, viewable from all angles, even with polarized glasses
• Reliable twist-lock connector system for easy installation
• SD card slot for software updates and charting add-ons
• FishReveal™ mode for better fish identification
• New imaging color palettes for increased contrast and viewability
• One-year warranty for superior quality and peace of mind

Specifications:

Display

• Size: 9" (228 mm)
• Resolution: 1024x600
• Type: IPS
• Antifog: Bonded LCD
• Viewing angles: 85° all
• Backlight: LED

Networking

• SD Card Storage: Micro SD Card (32 GB Max)

Power

• Local Supply: 12 VDC
• Consumption local supply: 650mA, 230mA at 12VDC (backlight full/off)
• Recommended Fuse Rating: 5A

Interface

• Keypad: 9-way directional keypad
  • Zoom +/-
  • Exit
  • Enter/Menu
  • Waypoint/Cursor
  • Power/Light
  • Pages

GPS

• Correction: SBAS
• Time to first fix: 45 s
• GPS: GPS / SBAS

Environment

• Humidity: 66°C at 95% for 48hrs
• Temperature operation: -15°C to +55°C (5°F to 131°F)
• Temperature storage: -20°C to +60°C (4°F to 140°F)
• Protection: IPX7 with card door closed

Mechanical

• Weight: 0.90 kg (2 lbs)
• Size: 274 mm (11") x 162 mm (7")
• Mounting: Panel mount or bracket
• Material: CYCOLOY C1200HF (PC & ABS blend)
• Color: Black
• Cable Inlet: 1 - 2 pin power connector / 1 - 8 pin sonar connector
