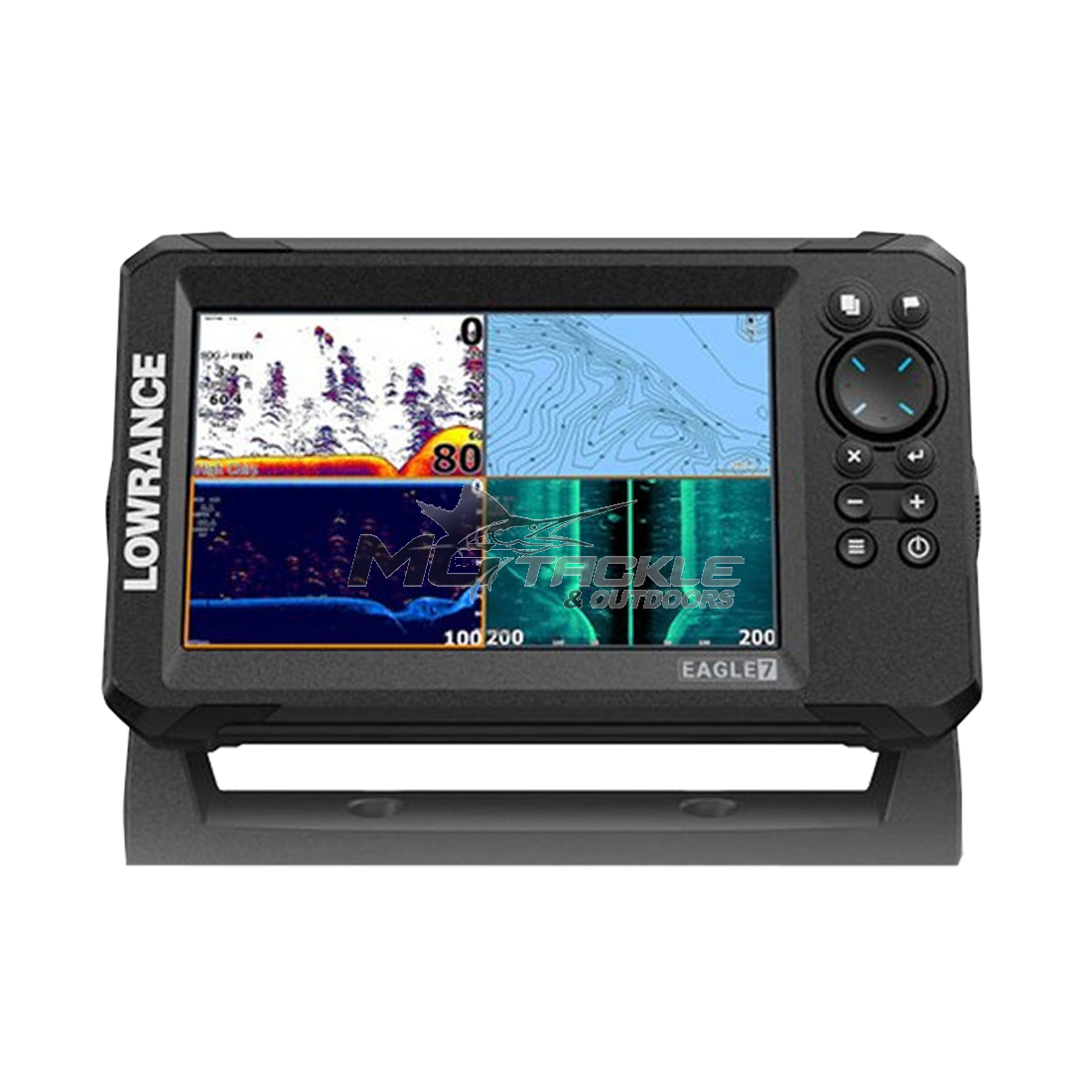

Lowrance Eagle 7 Tripleshot HD Aus/NZ Sounder

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.

Features:

• Enhanced TripleShot™ HD Transducer with Autotuning sonar
• Worldwide basemap
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging color palettes

Display:

• Backlight Color: Pure white LED
• Display Resolution: 800 x 480
• Display Size: 7 inches
• Screen Brightness: 1000 NITS
• Viewing Angle: s80° top/bottom, 80° left/right
• Connectivity:
• SD Card Storage: 1 slot (microSD® 32 GB maximum)

Cartography:

• Charts supported: C-MAP® DISCOVER™.
• Electrical:
• Power Consumption max: 550 mA @ 12 V DC with backlight on full
• Power Consumption min: 250 mA @ 12 V DC with backlight off
• Power Consumption typical: 550 mA @ 12 V DC with backlight on full
• Recommended Fuse Rating: 3A
• Supply Voltage: 12v DC (10.8-17VDC)

Environment:

• Humidity: 60°C, 95% relative humidity (RH) for 48 hours
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Waterproofrating: IPX7 with card door closed

GPS:

• Correction: SBAS
• Time to First Fix: 45s
• MFD:
• Cartography included: Worldwide basemap chart
• Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails

Physical:

• Compass Safe: 12" (300mm)
• Dimensions W x H x D: 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
• Mounting Type: Gimbal bracket or dash mount
• Weight: 0.46 kg (1.01 lb)
• Interface Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power/backlight
• Warranty Period 1 Year + 4 additional years of upgrade options totalling 5 years
